What a Braden MU2 Winch Looks Like

Below are several images of the Braden MU2 winch, the MU2 did not change in outward appearance during the 1946 to 1968 model years.

The 1961 and later WM300s did have an extended grill, which required longer frame extensions, but for the most part all the MU2s looked alike. It has been reported that some Power-Wagons were factory equipped with Tulsa winches. We would be interested in any information about these winches.

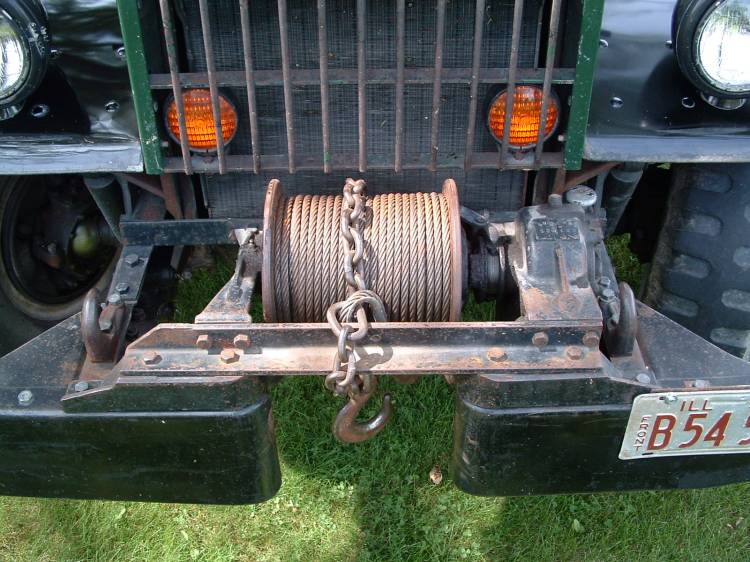

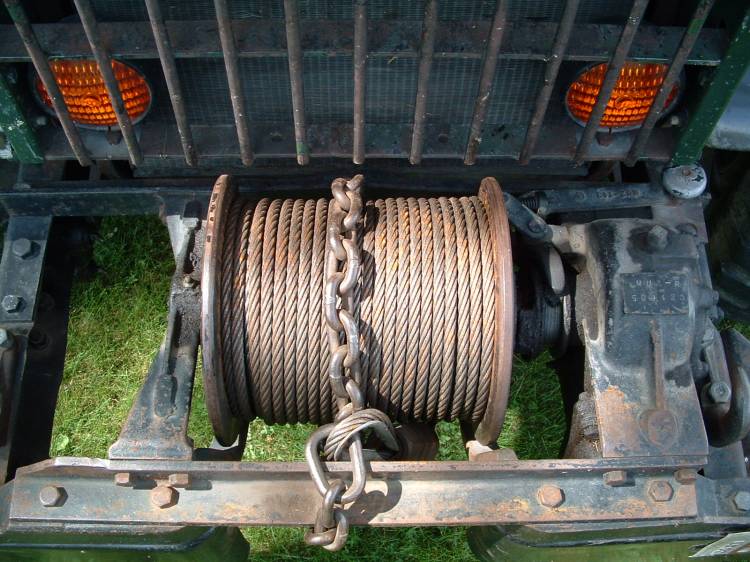

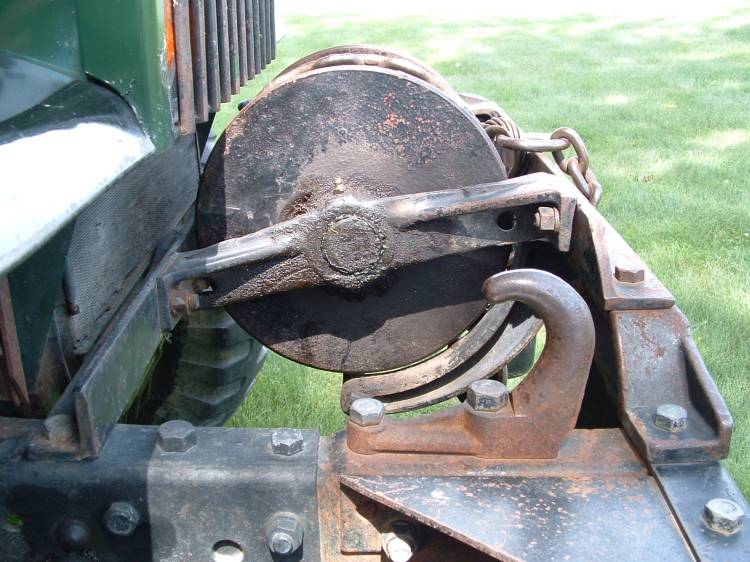

Look below for a variety of angles showing the MU2 winch mounted to a 1951 B-3-PW-126. 1951 winch photos courtesy of Clint Dixon.

Click for larger image

Click for larger image
Note the declutch handle on the back of the drivers side of the winch, an MU3 winch (winch looks much the same as an MU2) has this handle in another location, one clue to tell them apart.

Click for larger image

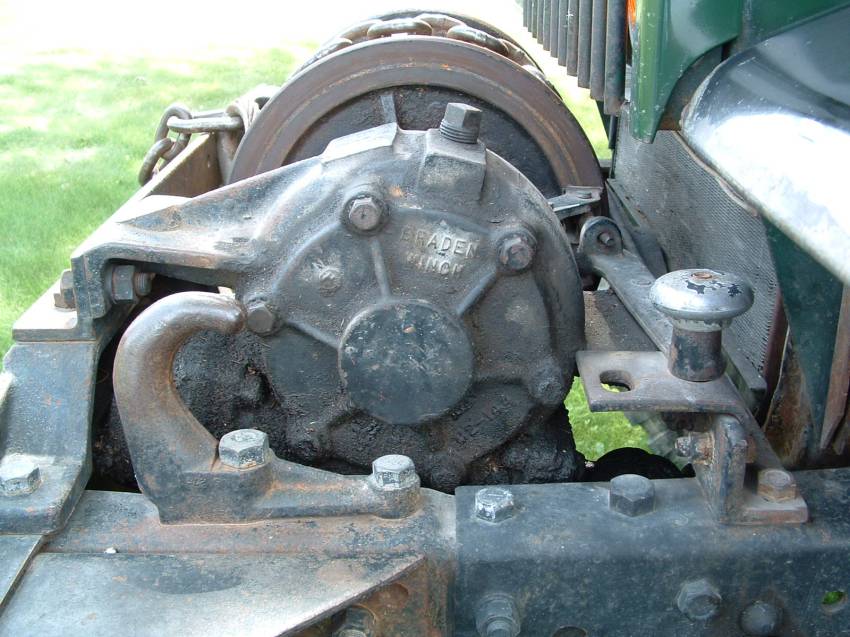

On the side of the winch can be read the Braden name, and their manufacturing location, Tulsa Oklahoma. Also there is the marking M2-144. This may not be true for all MU2s.

Click for larger image

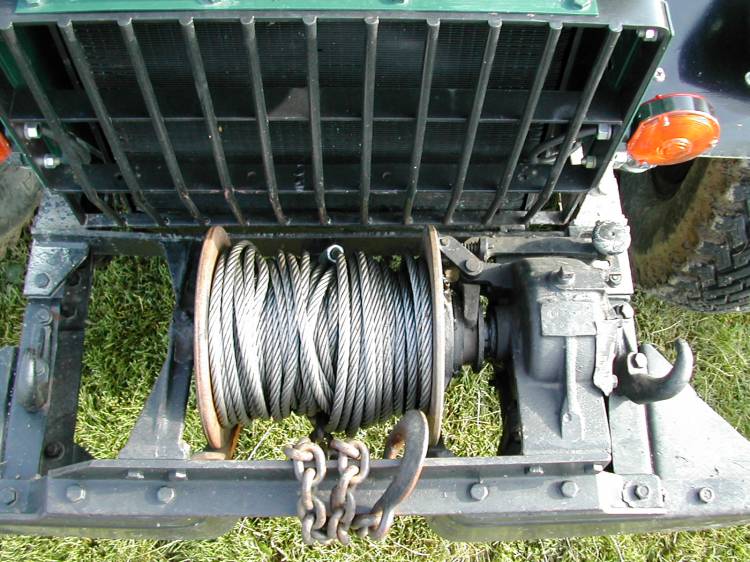

Below is a picture of a MU2 on a 62 WM300; note the extended grill and frame extensions.

Click for larger image
Eric Bannerman Photo

I hope to update this page from time to time as more info becomes available, and feedback is given about other information that would be good to include on this page.

Please contact the Registry maintainers at the below email address if you have any suggestions or questions.
