Posted by Greg Coffin [172.68.34.25] on Thursday, October 31, 2019 at 11:28:22 :
In Reply to: What box is that? two sets of mounts? posted by Chris Case [173.245.48.144] on Thursday, October 31, 2019 at 10:04:49 :
I don't know what steering box is in the prior photo (Chevy I think), but it's different from the Dodge/Saginaw box that Matt will be using. The picture was to show the flange on the frame. The odd box adds a little confusion. Sorry about that.

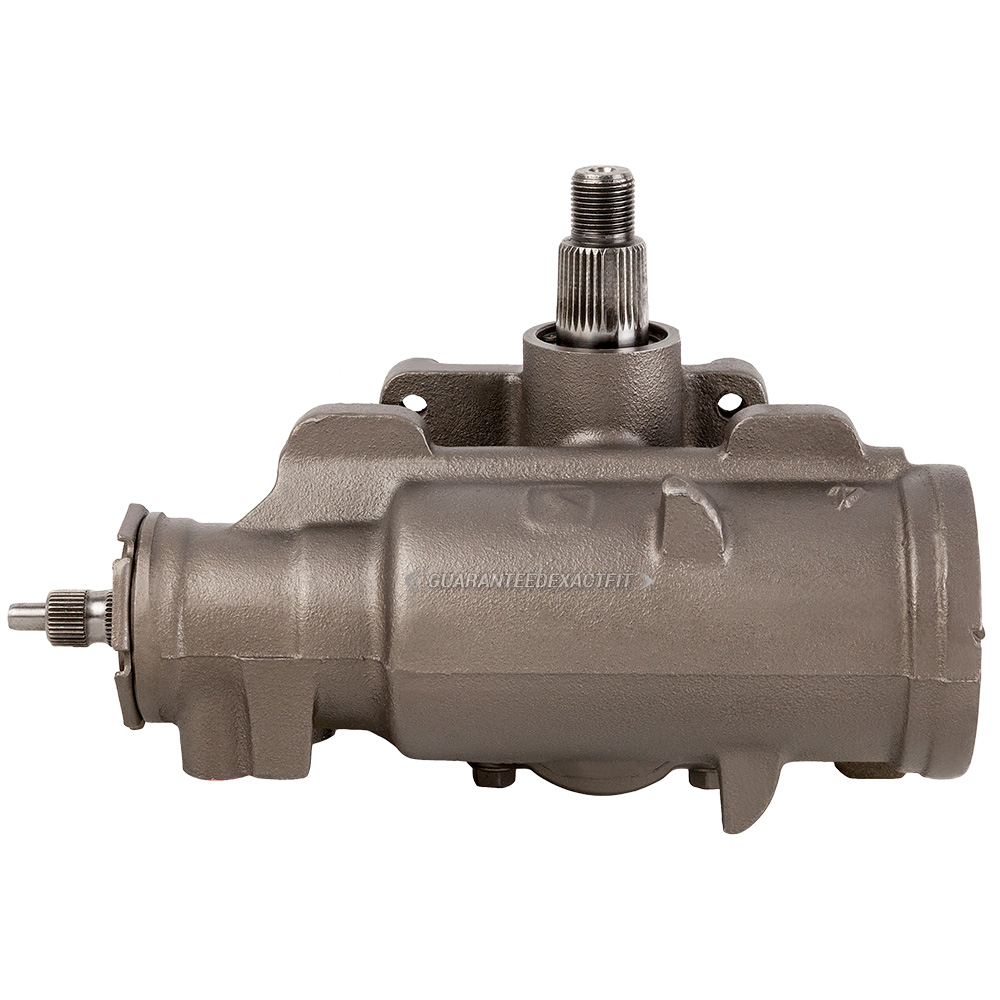

Above is a photo of the correct style steering box for the WDX-WM power steering conversion. NOTE that you will need a REVERSE rotation box for the WDX, like a Lares 997.
You can see the two "horns" that sit on either side of the main barrel. They are used to locate the box when mounted on a 70's Dodge truck, and aren't necessary when mounted on a WDX Power Wagon. The two bosses at the top and the long ridge between them is an oil galley that needs to remain unmolested.
