CARBURETORS USED ON POWER-WAGON L-HEAD ENGINES*


YEARS TRUCK MODEL DODGE PART NUMBER CARTER MODEL PHYSICAL DESCRIPTION   NOTES
1946-47 WDX 1189 251 ET1, ET2, ET4 "Square Top" with integral fuel filter and integral velocity governor Up to Engine:
T137-8219i
1947-49 WDX, B-1-PW 1138 899 E7F1 "Square Top" with divorced fuel filter and integral velocity governor From Engine: T137-8219 to T137-16489ii
1949-53 B-2-PW, B-3-PW 1315 677 E7S1 "Square Top" with divorced fuel filter and integral velocity governor From Engine: T137-16489 to T137-30543
1953-60 B-3-PW, B-4-PW,
C-1-PW, C-3-PW,
C-4-PW, K-6-W300,
L-6-W300M,
M-6-W300M,
P-6-WM300
1315 677 E7S1 "Square Top" with divorced fuel filter and integral velocity governor From Engine:
T137-30543iii
1953 B-3-PW, B-4-PW 1484 347 E7T1 "Round Top" with divorced fuel filter and sandwich type governor   From Engine:
T137-30543 TO T137-33844iv
1953-60 B-4-PW, C-1-PW,
C-3-PW, C-4-PW,
K-6-W300, L-6-W300M,
M-6-W300M,
P-6-WM300
1317 258 E7T2 "Round Top" with divorced fuel filter and sandwich type governor From Engine:
T137-33844v
1956 C-3-HW6 1317 258 E7T2 "Round Top" with divorced fuel filter and sandwich type governor   230 ENGINE
1957-60 K-6-W500, L-6-W500
M-6-W500, P-6-W500
1317 258 E7T2 "Round Top" with divorced fuel filter and sandwich type governor   230 ENGINE
'58 - '60 L-6-W300, M-6-W300
P-6-W300
1317 258 E7T2 "Round Top" with divorced fuel filter and sandwich type governor   230 ENGINE
1957-60 K-6-W100, K-6-W200,
L-6-W100, L-6-W200,
M-6-W100, M-6-W200,
P-6-W100, P-6-W200
1828 093 BBR2-2681-S "Round Top" with divorced fuel filter and sandwich type governor   230 ENGINE
1961 R-6-WM300 2202 724 BBS-3121-S "Round Top" with divorced fuel filter and sandwich type governor   251 ENGINE
1962 RR-6-WM300 2264 851 BBS-3277-S "Round Top" with divorced fuel filter and sandwich type governor   251 ENGINE
1963-68 S-6-WM300 2495 976 BBS-3277-S "Round Top" with divorced fuel filter and sandwich type governor   251 ENGINE
1961 R-6-W300, R-6-W500 2202 895,
2202 568
BBS-3137-S,
BBS-3110-S
 -   251 ENGINEvi
1962 RR-6-W300, RR-6-W500 2264 848 BBS-3274-S  -   251 ENGINEvi
1963 S-6-W300, S-6-W500 2299 153,
2295 979
BBS-3401-S,
BBS-3492-S
 -   251 ENGINEvi

*Sources - Carter carburetor Sales and Service Manual 2544B, Dodge Power-Wagon Parts Lists: D-11091, D-12004, D-13864, D-14468, D-15078, D-15788, D-16111, D-16325, D-16452, D-16887, 81-690-0005, 81-690-0123, 81-690-0817,
Parts Supersedence List D-14720, Service Bulletins: D-243, T-53, January 1951 PW-126 Specification Sheet, February 1955
PW6 Specification Sheet

iAlso used on engine numbers: 8326, 8327, 8329, 8330, 8331, 8332, 8334, 8335, 8336, 8337, 8339, 8340, 8343, 8344, 8345
iiNot used on engine numbers: 8226, 8327, 8329, 8330, 8331, 8332, 8334, 8335, 8336, 8337, 8339, 8340, 8343, 8344, 8345
iiiUsed only on trucks equipped with Variable Speed Mechanical Engine Governor
ivUsed on trucks not equipped with Variable Speed Mechanical Engine Governor
vUsed on trucks not equipped with Variable Speed Mechanical Engine Governor
viEarly/Late carburetors. No information available to denote change over serial number



For further reference: (Click for larger image)

ET4

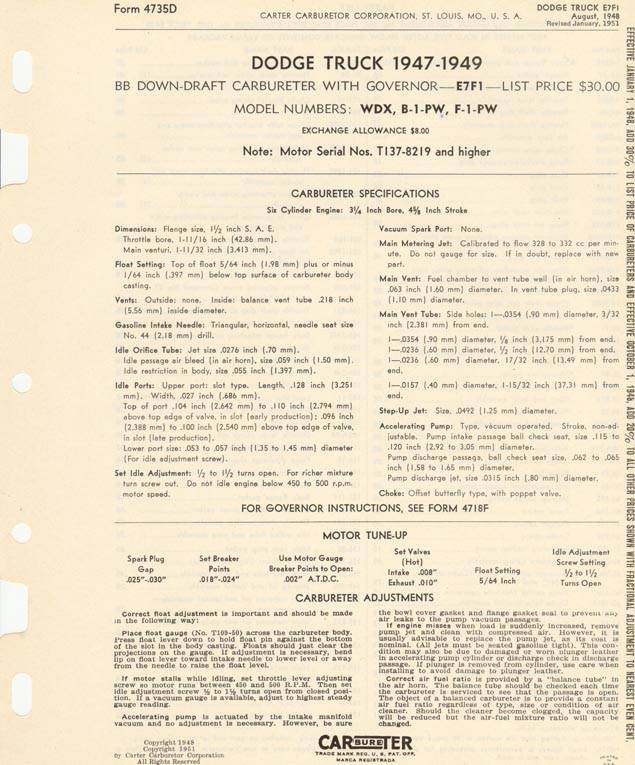

E7F1

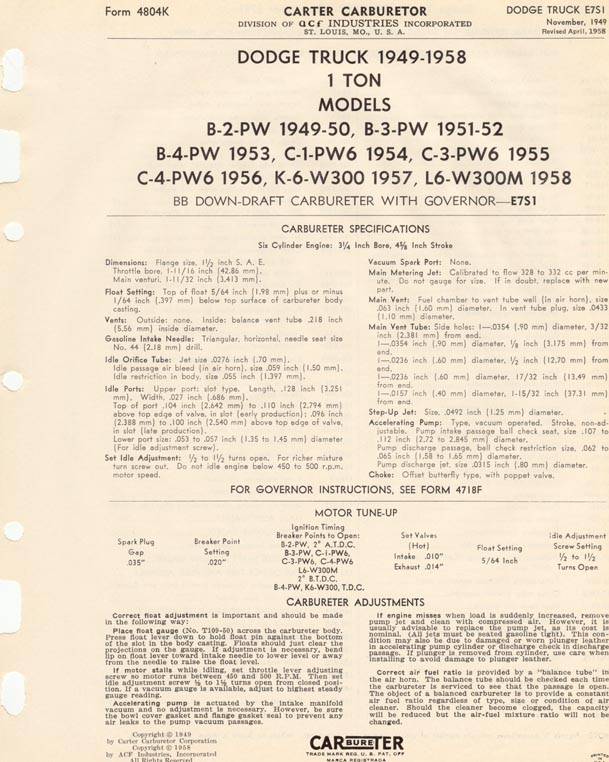

E7S1

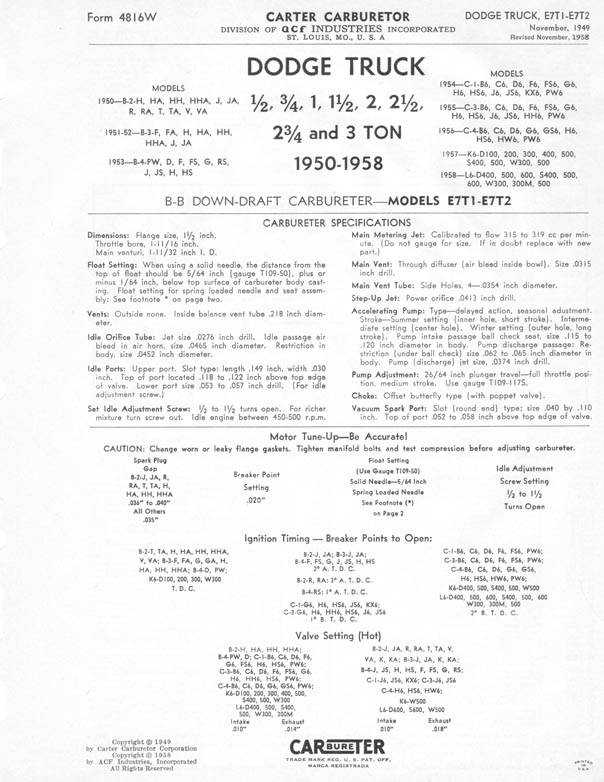

E7T1-E7T2

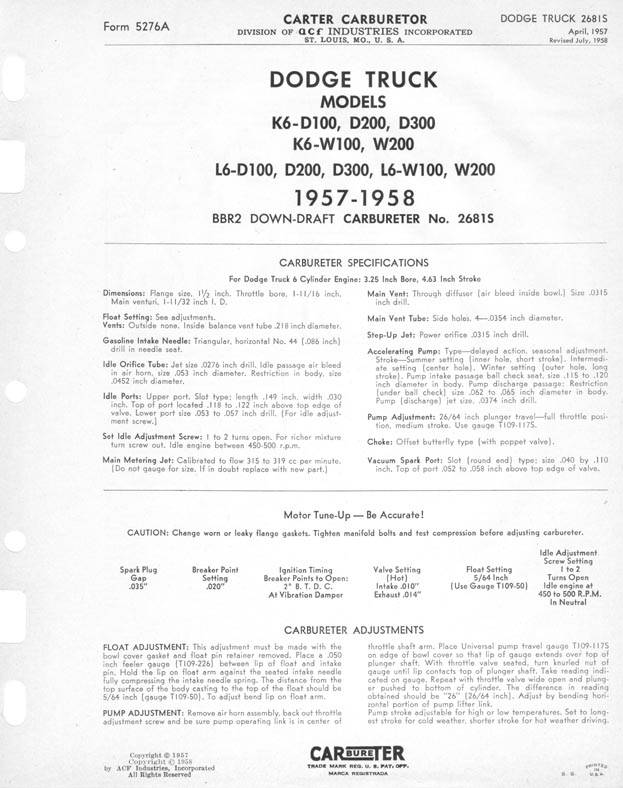

2681S

-Clint Dixon
